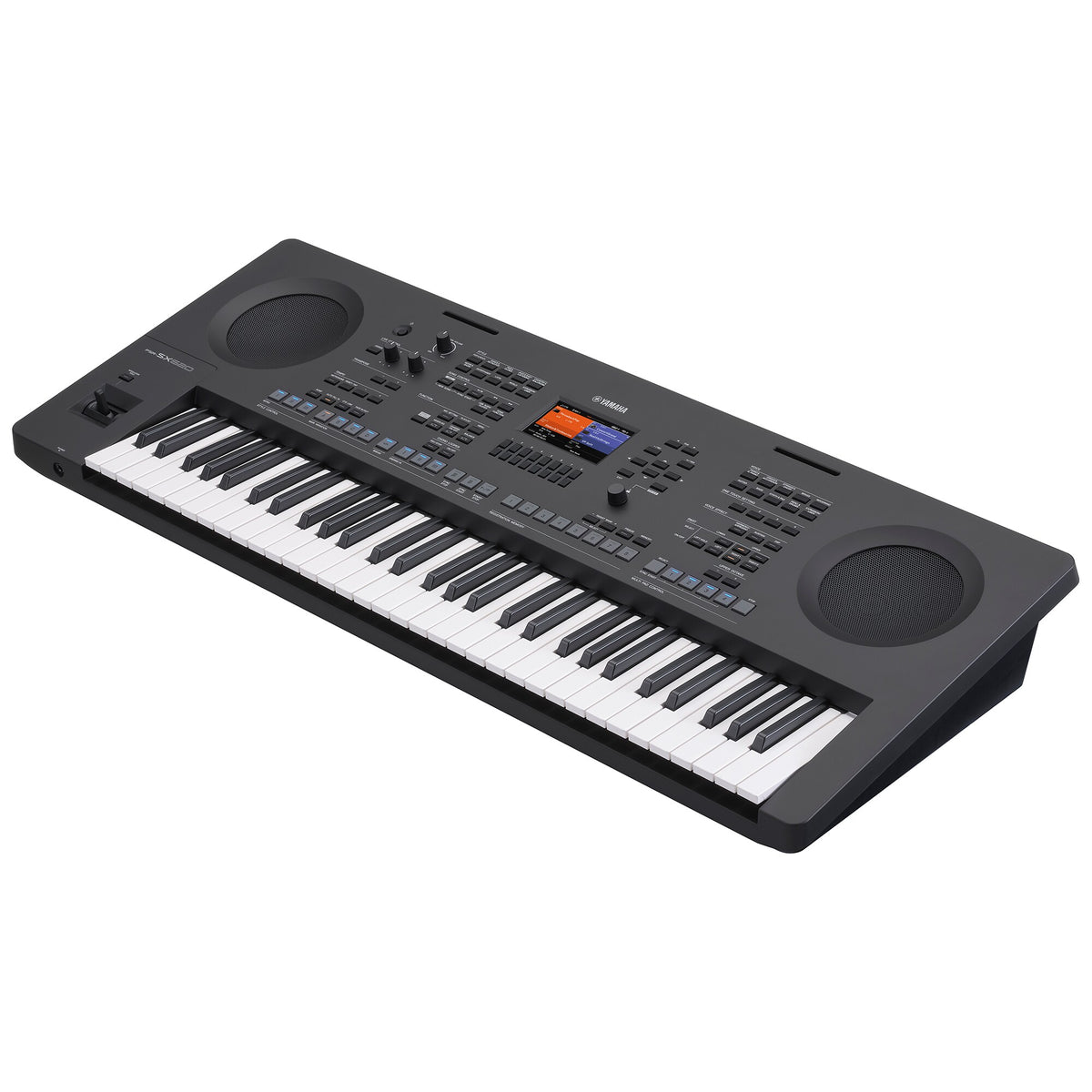

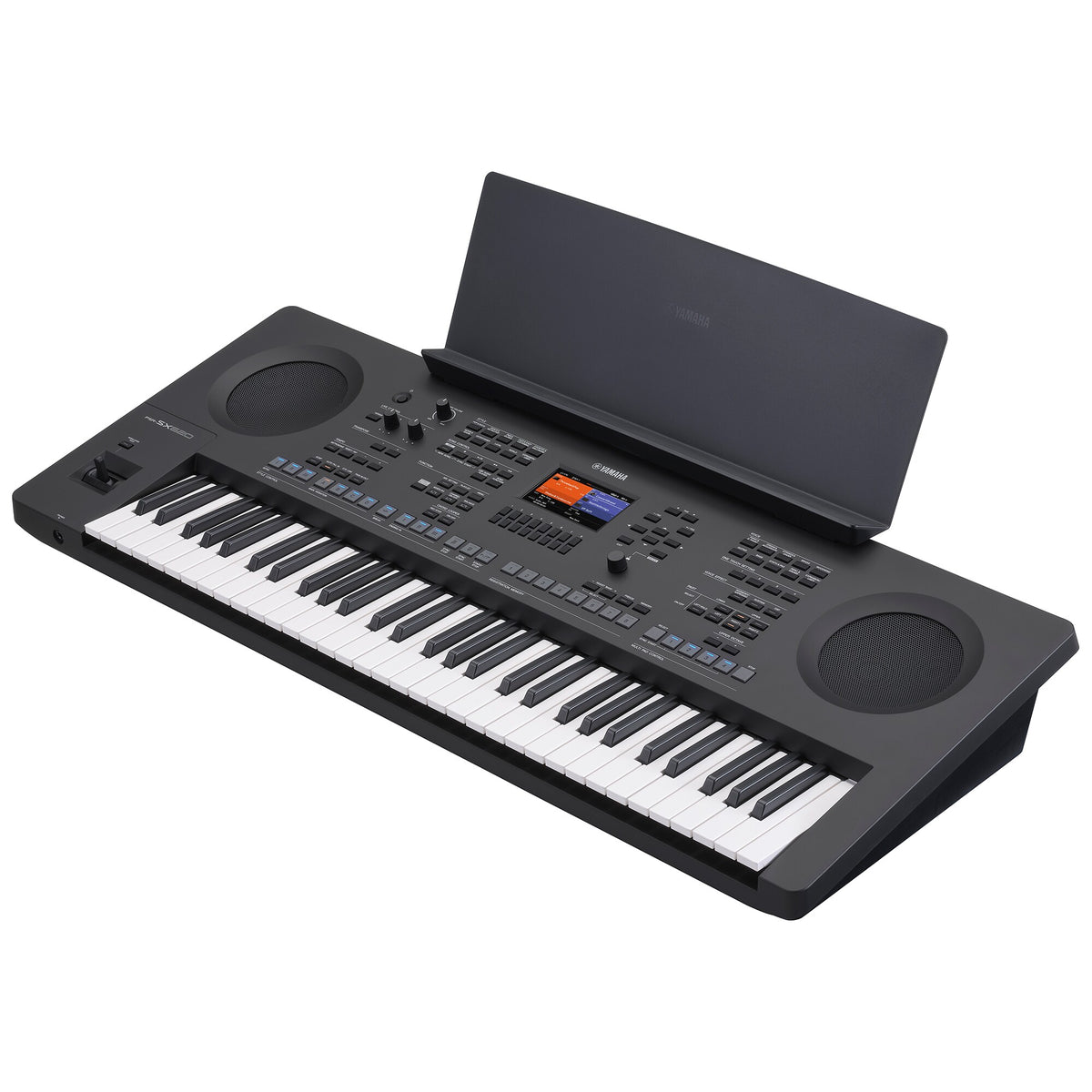

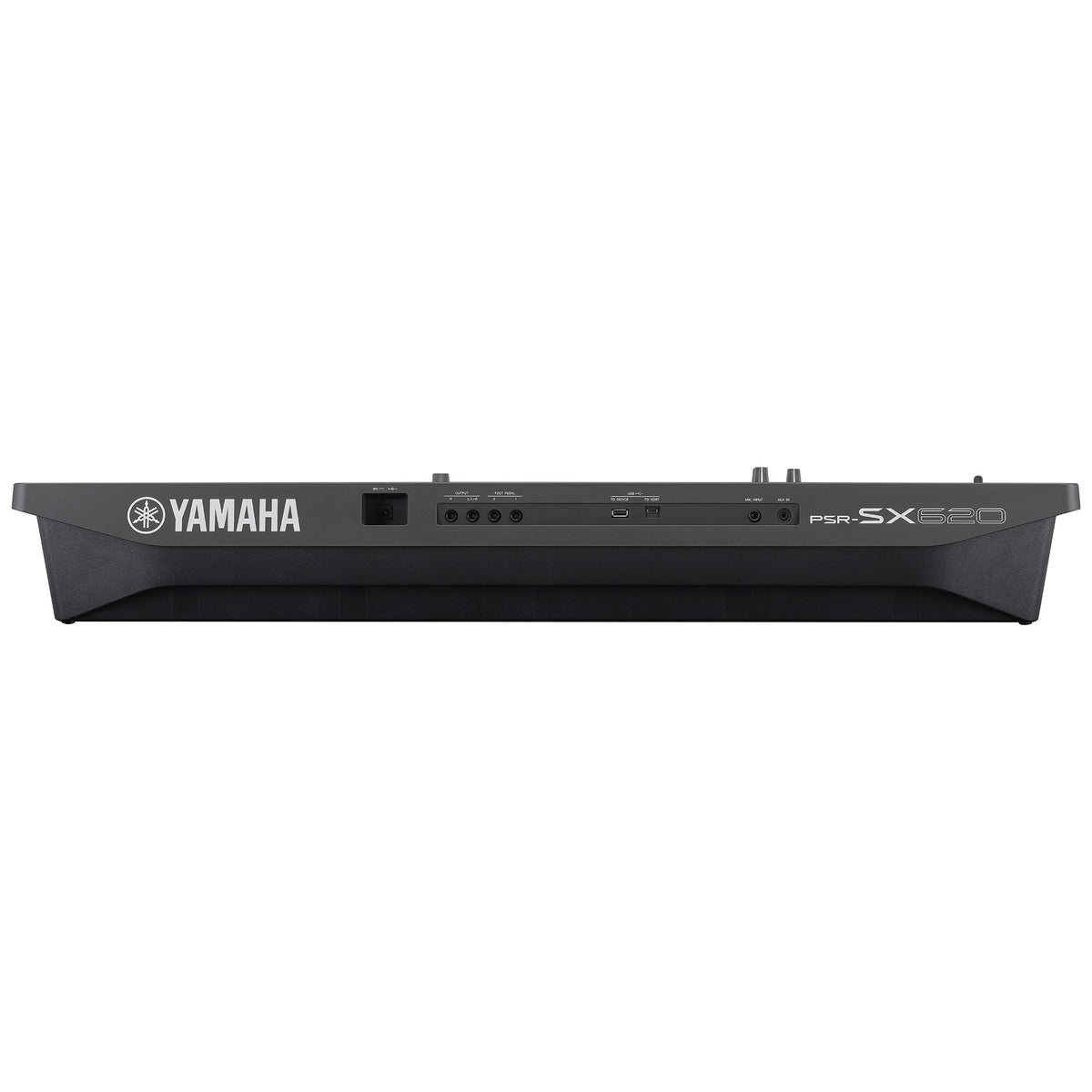

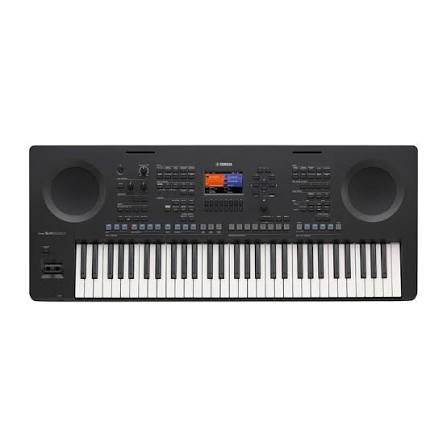

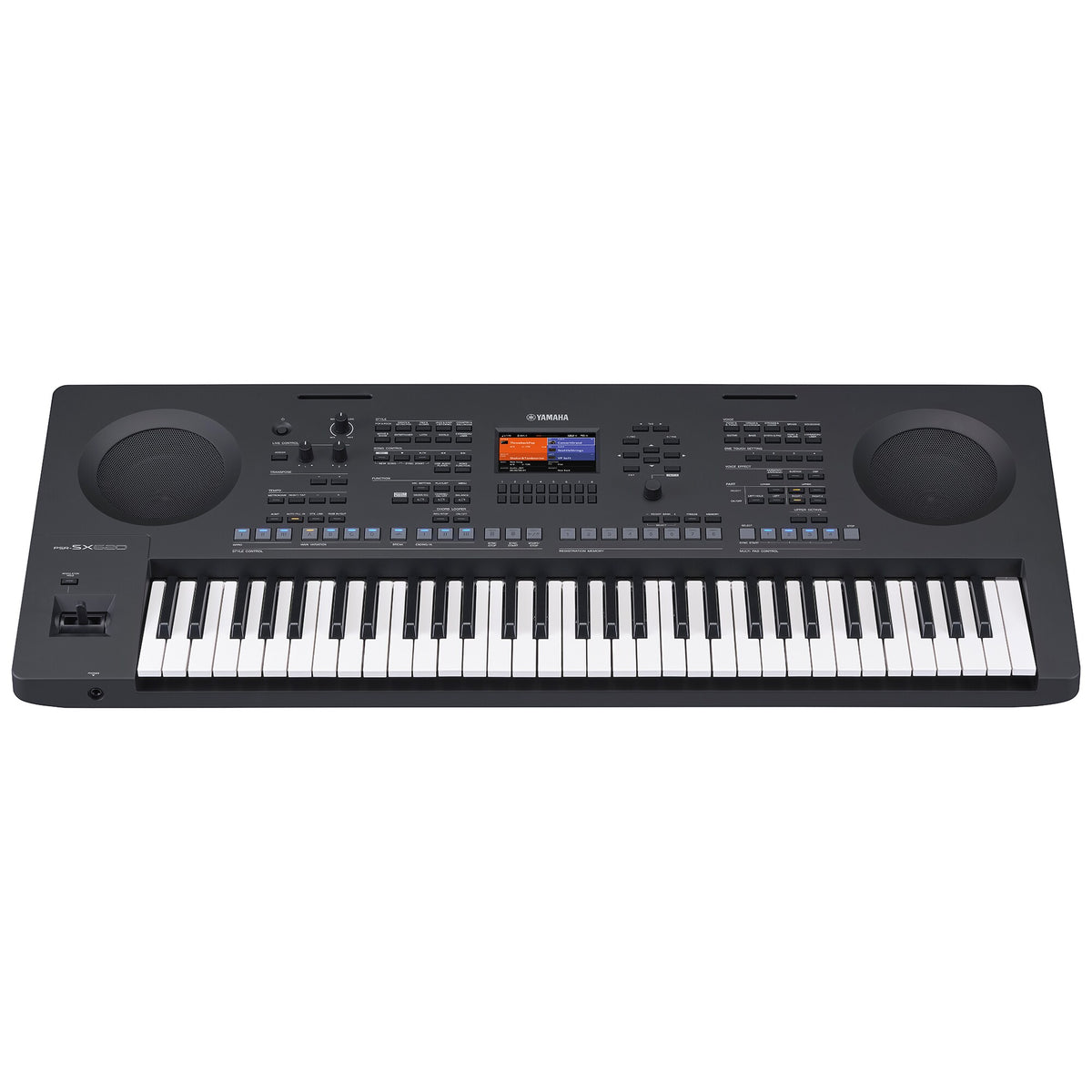

Yamaha PSR-SX620 Arranger Workstation Keyboard
Series: PSR-SX Series
Keyboard Type: Arranger Workstation
Number of Keys: 61
Finish: Black
Overview
The Yamaha PSR-SX620 is a powerful arranger workstation designed for performers, songwriters and musicians who want expressive sounds, realistic accompaniment and intuitive performance controls. As part of Yamaha's PSR-SX series, it combines over 1,000 instrument Voices with 450 accompaniment Styles, providing a versatile platform for creating and performing music across a wide range of genres.
Powered by Yamaha's AWM Stereo Sampling sound engine, the PSR-SX620 delivers a broad selection of realistic acoustic instruments, keyboards, synthesizers and orchestral sounds. Super Articulation Voices add expressive details and realistic playing nuances, helping performances sound more natural and authentic. With 128-note polyphony, it can handle complex arrangements and layered performances with ease.
The redesigned control panel provides quick access to essential performance features, including the assignable Joystick Controller and two Live Control knobs for real-time sound shaping. The Chord Looper allows you to record and repeat chord progressions, while Multi Pads provide additional rhythmic phrases, melodic patterns and audio loops to enhance your arrangements.
A 7-inch colour touchscreen makes navigating sounds, Styles and settings straightforward, while the built-in speaker system delivers powerful, balanced audio for practice and performance. Bluetooth audio connectivity allows wireless playback from compatible devices, and USB connectivity provides convenient options for recording, playback and expansion. Whether performing solo, accompanying singers or developing complete musical arrangements, the PSR-SX620 offers an extensive range of creative possibilities.
Key Features
Keyboard and Playability
61-key organ-style keyboard with initial touch response
Five touch-response settings: Normal, Soft 1, Soft 2, Hard 1 and Hard 2
Assignable Joystick Controller for expressive pitch and modulation control
Two assignable Live Control knobs for real-time sound adjustment
7-inch colour TFT touchscreen with 800 x 480 resolution
128-note maximum polyphony
Sounds and Tone Generation
AWM Stereo Sampling sound engine for detailed instrument sounds
1,002 preset Voices, including 51 Drum/SFX Kits and 480 XG Voices
Super Articulation Voices for expressive instrument performances
34 MegaVoice sounds for realistic instrumental arrangements
Expansion Voice memory of approximately 380MB
Four-part keyboard layering and splitting: Right 1, Right 2, Right 3 and Left
Arranger and Performance Features
450 preset accompaniment Styles across a wide range of musical genres
416 Pro Styles, 33 Session Styles and 1 Free Play Style
Chord Looper for recording and repeating chord progressions
Multi Pads for triggering rhythmic phrases, melodies and audio loops
Smart Chord function for creating full chords from single notes
Four One Touch Settings for each Style
Three Intro variations, four Main variations, four Fills and three Endings
MIDI Song to Style compatibility
Effects and Sound Control
59 preset Reverb types and 30 user settings
106 preset Chorus types and 30 user settings
322 preset DSP effects and 30 user settings
Five preset Master Compressor settings and 30 user settings
Five preset Master EQ settings and 30 user settings
28-part EQ for detailed sound shaping
Arpeggiator and Harmony/Echo functions
Connectivity and Recording
Bluetooth Audio for wireless playback from compatible devices
USB TO HOST connection for computer connectivity
USB TO DEVICE connection for flash drives and external storage
Stereo AUX IN connection for external audio sources
Dedicated stereo MAIN OUTPUT connections
Microphone/Guitar input for connecting external sources
MIDI IN/OUT connectivity
Headphone output
Audio recording and playback in WAV and MP3 formats
Design Details
Redesigned control panel for intuitive operation
Large colour touchscreen for easy navigation
Built-in stereo speaker system with two 12cm speakers
Two 15W amplifiers for integrated sound output
Compact cabinet design suitable for home and stage use
Black finish with dedicated performance controls
Specifications
|
Category
|
Detail
|
|
Model
|
Yamaha PSR-SX620
|
|
Series
|
PSR-SX
|
|
Instrument Type
|
Arranger Workstation
|
|
Keyboard
|
61 Keys
|
|
Keyboard Action
|
Organ Style
|
|
Touch Response
|
Initial Touch
|
|
Touch Sensitivity
|
Normal, Soft 1, Soft 2, Hard 1, Hard 2
|
|
Sound Engine
|
AWM Stereo Sampling
|
|
Maximum Polyphony
|
128 Notes
|
|
Preset Voices
|
1,002
|
|
Drum/SFX Kits
|
51
|
|
XG Voices
|
480
|
|
Expansion Voice Memory
|
Approx. 380MB
|
|
Accompaniment Styles
|
450
|
|
Pro Styles
|
416
|
|
Session Styles
|
33
|
|
Free Play Styles
|
1
|
|
Multi Pads
|
226 Banks x 4 Pads
|
|
Chord Looper
|
Yes
|
|
Effects
|
Reverb, Chorus, DSP, Master Compressor and Master EQ
|
|
Display
|
7" Colour TFT LCD
|
|
Display Resolution
|
800 x 480
|
|
Touchscreen
|
Yes
|
|
Bluetooth Audio
|
Yes
|
|
USB TO HOST
|
Yes
|
|
USB TO DEVICE
|
Yes
|
|
MIDI
|
IN/OUT
|
|
AUX IN
|
Stereo Mini Jack
|
|
Audio Outputs
|
Main Output L/L+R and R
|
|
Headphone Output
|
Standard Stereo Phone Jack
|
|
Microphone Input
|
Yes
|
|
Speakers
|
2 x 12cm
|
|
Amplifiers
|
2 x 15W
|
|
Dimensions (W x H x D)
|
993 x 143 x 404mm
|
|
Weight
|
8.1kg
|
|
Colour
|
Black
|
|
Included Accessories
|
Music Rest, Owner's Manual and AC Adaptor (regional supply may vary)
|
Why Choose This Keyboard?
The Yamaha PSR-SX620 is ideal for musicians who want:
An expressive arranger workstation with over 1,000 instrument sounds
450 accompaniment Styles covering a wide range of musical genres
Intuitive performance controls, including a Joystick and assignable Live Control knobs
Creative tools such as Chord Looper, Multi Pads and Smart Chord
Bluetooth audio, USB connectivity and integrated speakers for versatile performance
