Jackson Legend Series Limited Edition Signature Randy Rhoads CD1
Series: Legend Series Body Shape: Randy Rhoads (RR) Orientation: Right-Handed Finish: Vintage White with Black Pinstripes Gloss
Overview

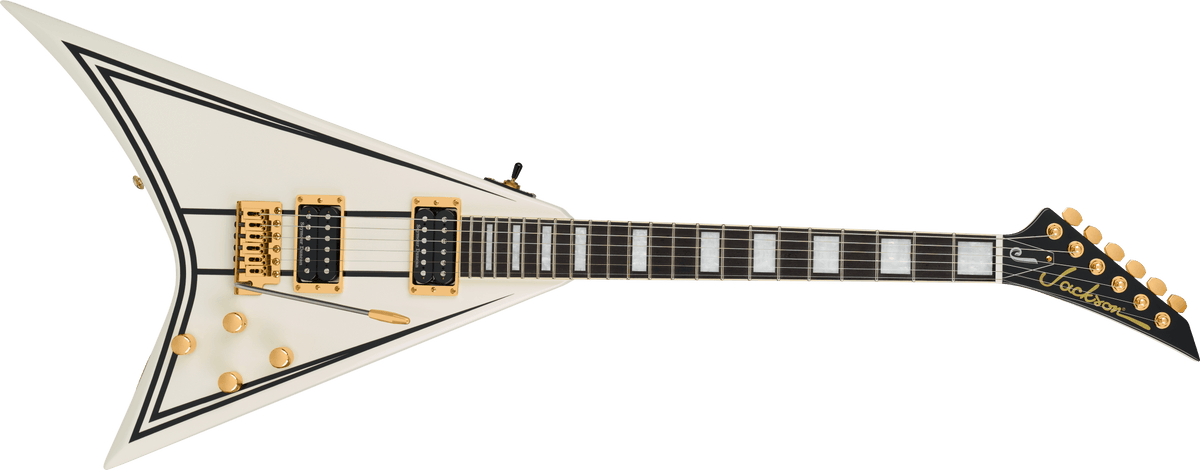

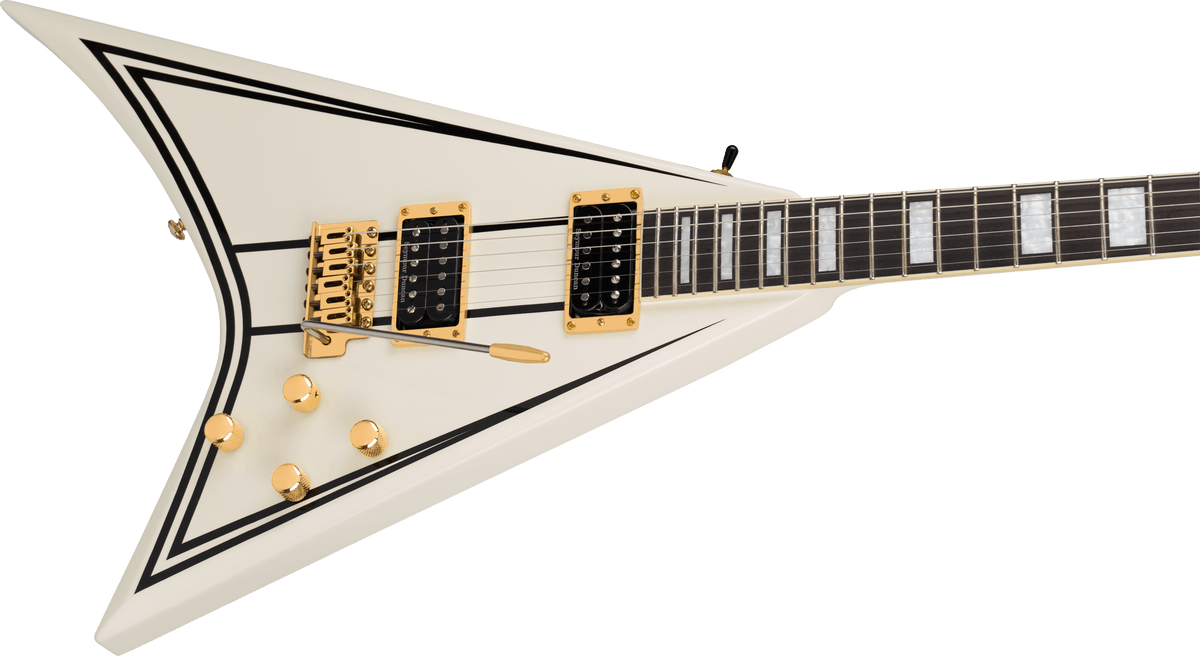

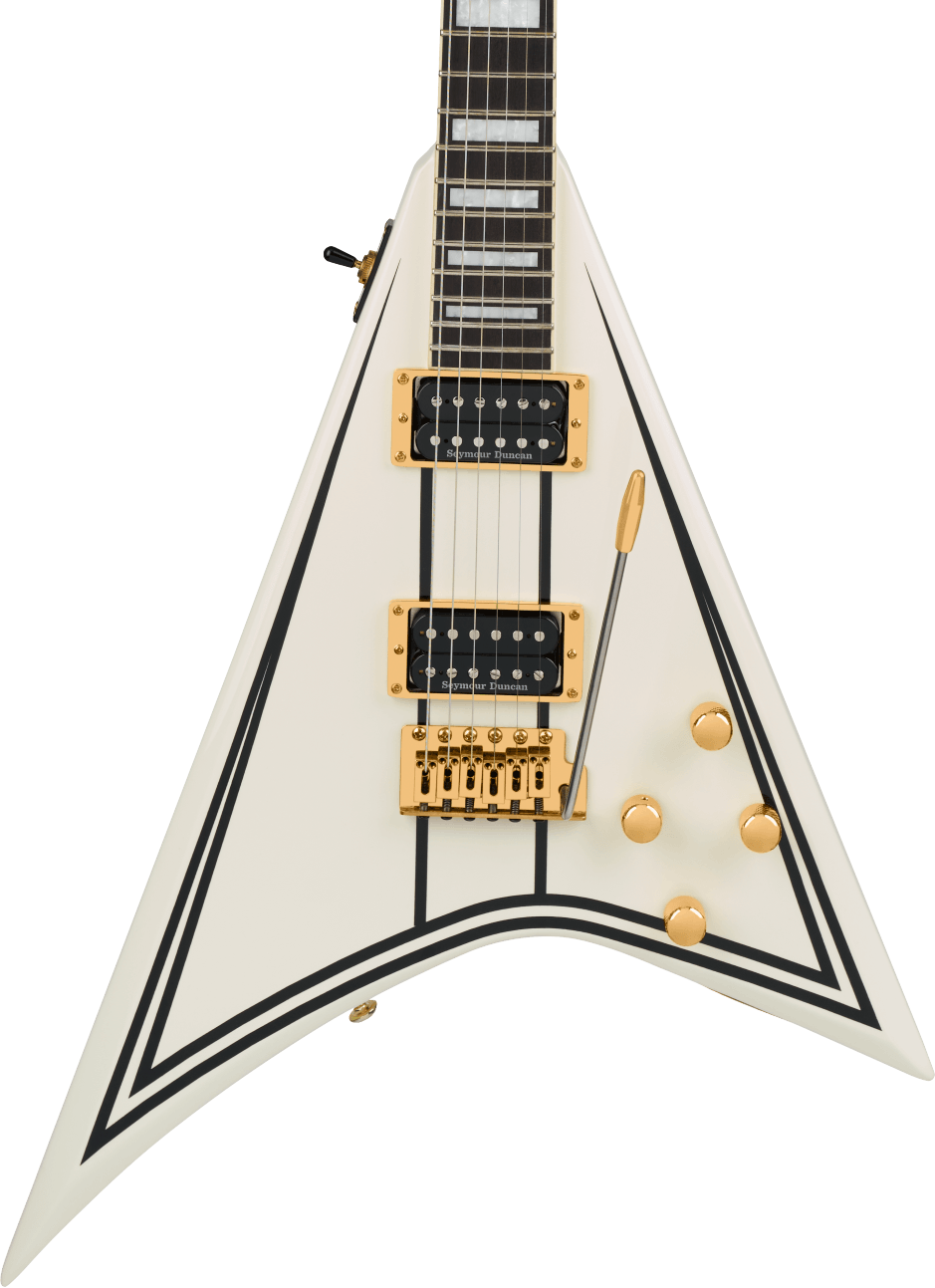

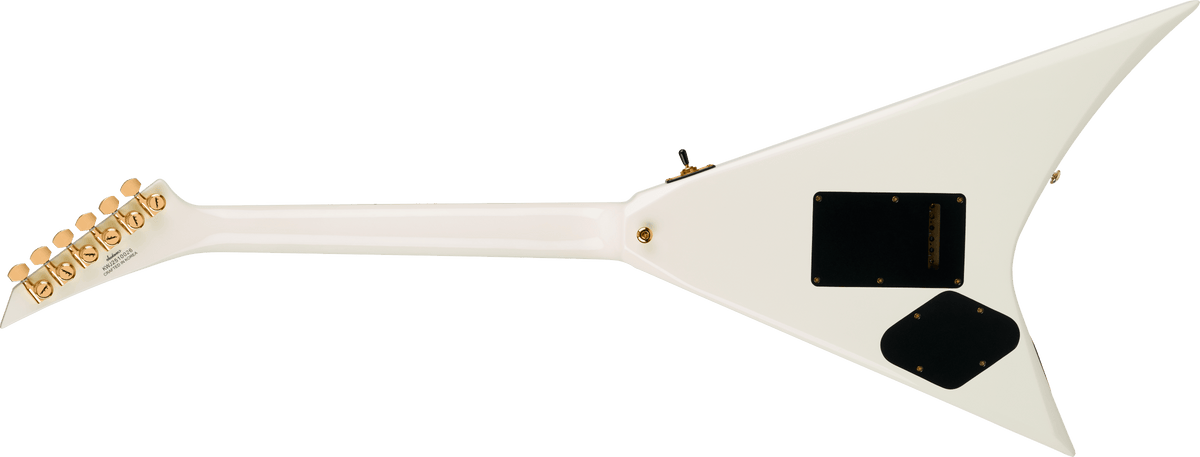

The Jackson Legend Series Limited Edition Signature Randy Rhoads CD1 brings the iconic angular Randy Rhoads V-shaped design to a premium limited-edition instrument. Finished in Vintage White with contrasting black pinstripes and gold hardware, it combines the unmistakable styling of the original Randy Rhoads design with high-performance construction and professional-grade components. The alder body provides a balanced tonal foundation, making it well suited to powerful rhythm playing and expressive lead work.
At the heart of the CD1 is a three-piece maple neck-through-body construction reinforced with graphite, designed to provide stability, sustain and excellent access across the fingerboard. The ebony fingerboard features a 12"-16" compound radius, 22 jumbo frets and pearloid block inlays. This combination creates a comfortable playing surface for everything from precise rhythm work to fast solos and wide bends.
A pair of Seymour Duncan humbuckers — a JB SH-4 at the bridge and a '59 SH-1N at the neck — delivers a versatile range of tones, from aggressive high-output distortion to warm, articulate cleans. A three-position toggle switch and individual volume controls for each pickup, alongside two tone controls, provide straightforward tonal shaping. The six-saddle vintage synchronized tremolo adds expressive vibrato, while the included Jackson CD1 Foam Core case provides protection for transport and storage.
Key Features
Playability and Comfort
The 25.5" scale length provides familiar string tension and response, while the 12"-16" compound-radius ebony fingerboard offers a flatter surface for bends and lead playing without sacrificing comfort for chords. The jumbo frets provide a smooth playing feel, and the neck-through-body construction offers unobstructed access to the upper frets.
Tonewoods and Construction
The alder body delivers a balanced tonal foundation with clear note definition and a strong midrange. A three-piece maple neck runs through the body and is reinforced with graphite for enhanced stability. The ebony fingerboard features pearloid block inlays and black side dots, creating a striking contrast against the Vintage White finish.
Electronics

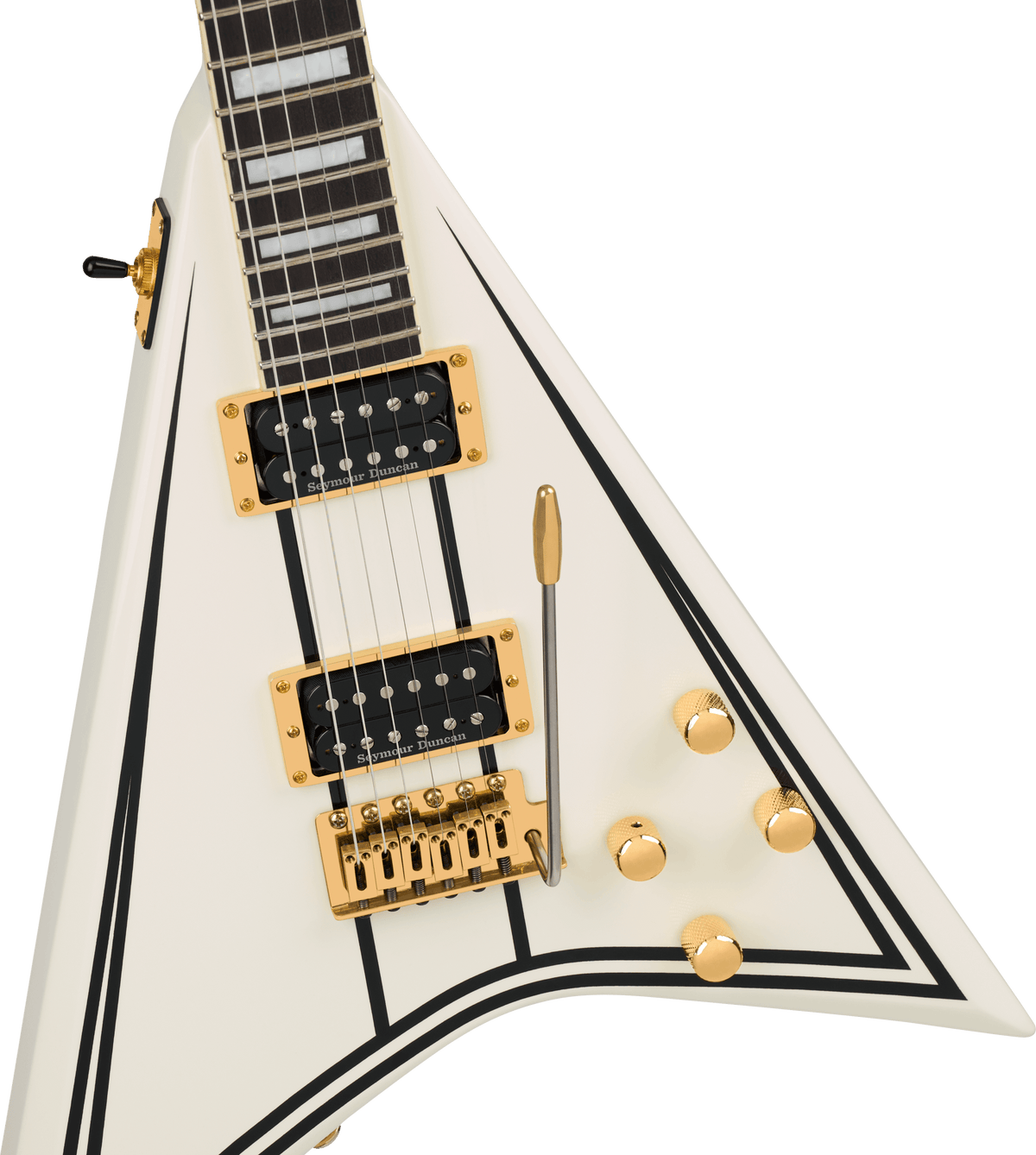

The CD1 features a Seymour Duncan JB SH-4 humbucker at the bridge and a Seymour Duncan '59 SH-1N humbucker at the neck. The JB provides a powerful, articulate response suited to driven rhythm tones and cutting leads, while the '59 offers a warmer, more open vintage-inspired sound. Two individual volume controls and two tone controls allow independent adjustment of each pickup, with a three-position toggle selecting bridge, both or neck pickup.
Hardware and Setup
A six-saddle vintage synchronized tremolo provides expressive pitch modulation, paired with a vintage-style tremolo arm. Jackson sealed die-cast locking tuners support reliable tuning stability, while the Graph Tech TUSQ XL string nut provides a low-friction contact point. Gold hardware complements the guitar's distinctive finish, and nickel-plated steel .009-.042 strings are fitted as standard.
Design Details

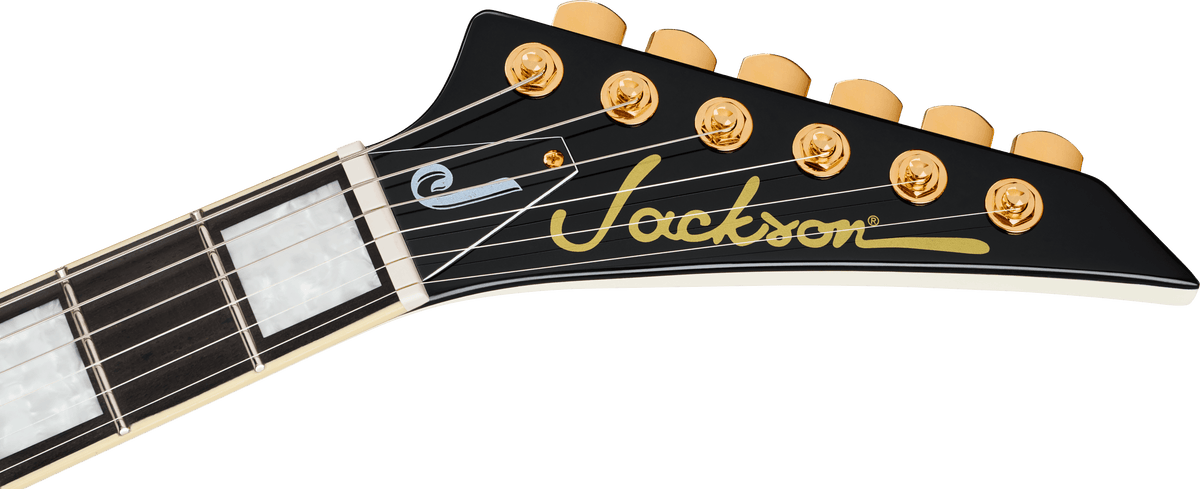

The distinctive Randy Rhoads V-shaped body is finished in Vintage White with black pinstripes, creating a striking contrast against the gold bridge, tuners and control hardware. Pearloid block inlays, a black-bound ebony fingerboard and Jackson's pointed six-in-line headstock complete the design. The guitar is supplied with a Jackson CD1 Foam Core case.
Specifications
|
Category
|
Detail
|
|
Series
|
Legend Series
|
|
Model
|
Limited Edition Signature Randy Rhoads CD1
|
|
Body Shape
|
Randy Rhoads (RR)
|
|
Body Material
|
Alder
|
|
Body Finish
|
Gloss
|
|
Colour
|
Vintage White with Black Pinstripes
|
|
Neck Material
|
3-Piece Maple
|
|
Neck Construction
|
Neck-Through-Body with Graphite Reinforcement
|
|
Neck Finish
|
Gloss Colour-Matched
|
|
Fingerboard
|
Ebony
|
|
Fingerboard Radius
|
12"-16" Compound (304.8–406.4 mm)
|
|
Number of Frets
|
22
|
|
Fret Size
|
Jumbo
|
|
Scale Length
|
25.5" (648 mm)
|
|
Nut Material
|
Graph Tech TUSQ XL
|
|
Nut Width
|
1.6875" (42.86 mm)
|
|
Fingerboard Inlays
|
Pearloid Block
|
|
Side Dots
|
Black
|
|
Pickups
|
Seymour Duncan JB SH-4 Bridge / '59 SH-1N Neck
|
|
Pickup Configuration
|
HH
|
|
Controls
|
Volume 1 (Neck), Volume 2 (Bridge), Tone 1 (Neck), Tone 2 (Bridge)
|
|
Switching
|
3-Position Toggle
|
|
Bridge
|
6-Saddle Vintage Synchronized Tremolo
|
|
Tremolo Arm
|
Vintage-Style
|
|
Tuning Machines
|
Jackson Sealed Die-Cast Locking
|
|
Hardware Finish
|
Gold
|
|
Strings
|
Nickel Plated Steel .009-.042
|
|
Case
|
Jackson CD1 Foam Core Case
|
|
Orientation
|
Right-Handed
|
|
Country of Origin
|
South Korea
|
Why Choose This Guitar?
The Jackson Legend Series Limited Edition Signature Randy Rhoads CD1 is ideal for players who want:
-
The iconic Randy Rhoads V-shaped design in a limited-edition Vintage White finish
-
Seymour Duncan JB and '59 humbuckers for versatile rock and metal tones
-
A stable maple neck-through-body construction with graphite reinforcement
-
An ebony compound-radius fingerboard with 22 jumbo frets for fast, comfortable lead playing
-
Premium gold hardware, a vintage synchronized tremolo and an included Jackson CD1 Foam Core case
